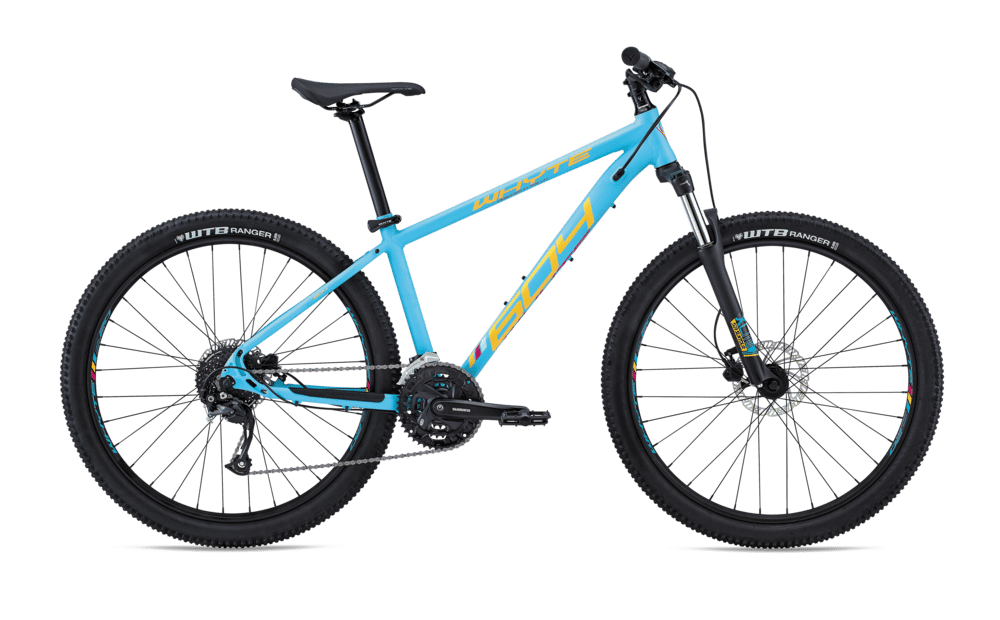

2018 Whyte 604 Compact geometry
Full frame geometry for the 2018 Whyte 604 Compact, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 592 | 411 | 74 | 68.5 | 107 | 581 | 381 | 764 | 435 | 1099 |
| S | 600 | 428 | 74 | 68.5 | 115 | 600 | 406 | 784 | 435 | 1119 |
| M | 609 | 444 | 74 | 68.5 | 125 | 619 | 444 | 804 | 435 | 1139 |
All measurements in millimetres unless marked (°) for angles.
