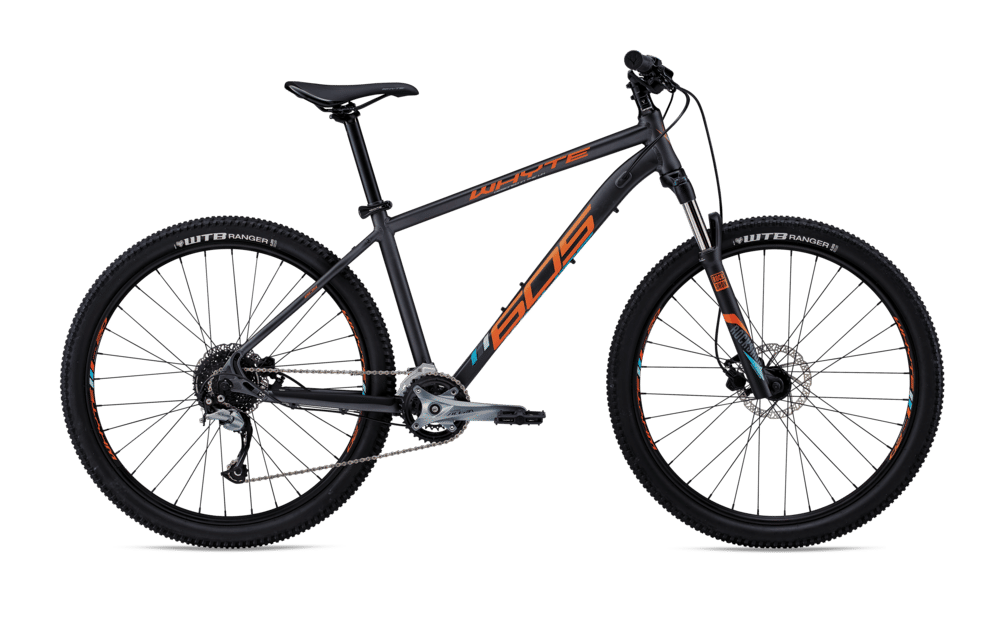

2018 Whyte 600 Series geometry
Full frame geometry for the 2018 Whyte 600 Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 433 | 74 | 68.5 | 115 | 605 | 406 | 778 | 435 | 1124 |
| M | 609 | 450 | 74 | 68.5 | 125 | 624 | 444 | 796 | 435 | 1144 |
| L | 618 | 466 | 74 | 68.5 | 135 | 643 | 483 | 822 | 435 | 1164 |
| XL | 628 | 482 | 74 | 68.5 | 145 | 662 | 533 | 850 | 435 | 1184 |
All measurements in millimetres unless marked (°) for angles.
