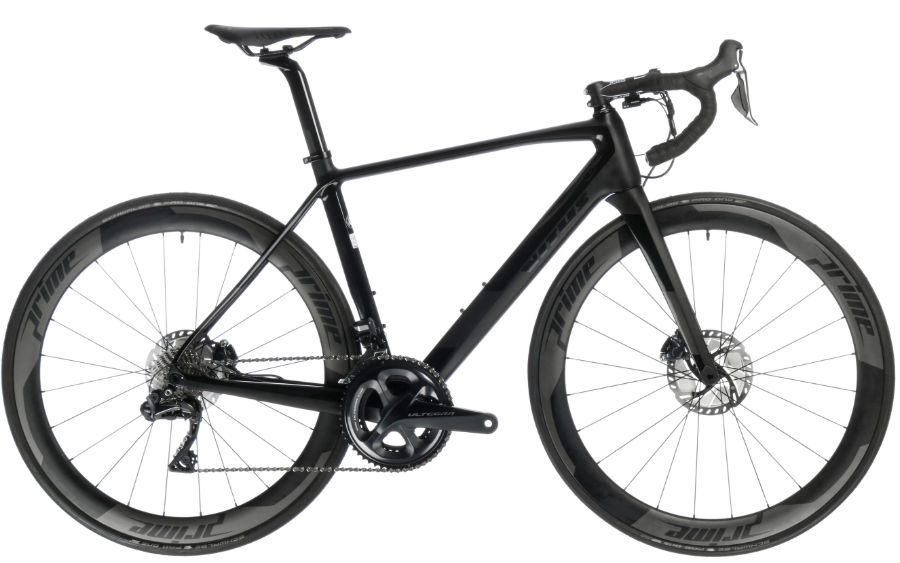

2019 Vitus ZX1 Disc geometry
Full frame geometry for the 2019 Vitus ZX1 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 516 | 370 | 74.3 | 71.5 | 115 | 515 | 460 | 72 | 410 | 968 | 43 |
| S | 534 | 378 | 74 | 72.5 | 130 | 531 | 480 | 72 | 410 | 672 | 43 |
| M | 548 | 385 | 73.5 | 73 | 145 | 547 | 500 | 70 | 410 | 980 | 43 |
| L | 556 | 393 | 73 | 73 | 155 | 563 | 525 | 69 | 410 | 991 | 43 |
| XL | 569 | 406 | 73 | 73 | 170 | 580 | 550 | 67 | 410 | 1009 | 43 |
| XXL | 588 | 412 | 72.5 | 73 | 190 | 597 | 570 | 67 | 410 | 1020 | 43 |
All measurements in millimetres unless marked (°) for angles.
