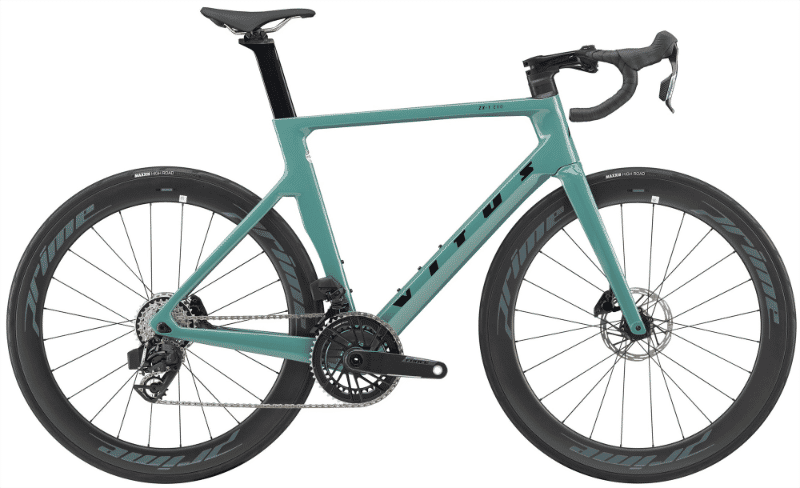

2026 Vitus ZX-1 EVO geometry
Full frame geometry for the 2026 Vitus ZX-1 EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 500 | 372 | 73.6 | 70.9 | 89.5 | 520 | 753 | 70 | 579 | 410 | 979 | 51 |
| S | 522 | 381 | 73.5 | 71.6 | 112.3 | 537 | 774 | 69 | 590 | 410 | 990 | 51 |
| M | 543 | 387 | 73.4 | 72.4 | 129.6 | 551 | 794 | 69 | 591 | 410 | 991 | 45 |
| L | 562 | 396 | 73.3 | 72.9 | 147.8 | 566 | 816 | 68 | 600 | 410 | 1000 | 45 |
| XL | 578 | 406 | 73.2 | 73.2 | 164.5 | 581 | 832 | 68 | 611 | 410 | 1012 | 45 |
| XXL | 595 | 416 | 73.5 | 73.5 | 181 | 592 | 850 | 68 | 623 | 410 | 1024 | 45 |
All measurements in millimetres unless marked (°) for angles.
