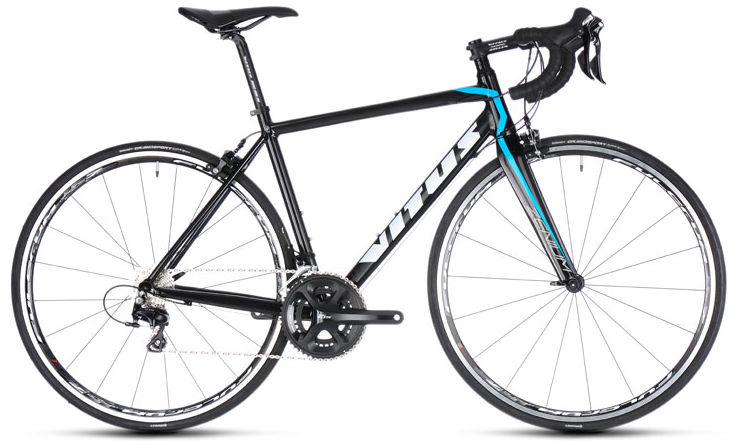

2014 Vitus Zenium geometry
Full frame geometry for the 2014 Vitus Zenium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 537 | 379 | 73.8 | 73 | 135 | 535 | 480 | 70 | 583 | 405 | 978 |
| 54 | 547 | 385 | 73.5 | 73 | 145 | 547 | 500 | 70 | 592 | 405 | 987 |
| 56 | 561 | 386 | 73 | 73 | 160 | 558 | 520 | 70 | 598 | 405 | 993 |
| 58 | 571 | 396 | 73 | 73 | 170 | 570 | 540 | 70 | 610 | 405 | 1005 |
| 60 | 583 | 407 | 73 | 73 | 180 | 585 | 560 | 70 | 625 | 405 | 1020 |
All measurements in millimetres unless marked (°) for angles.
