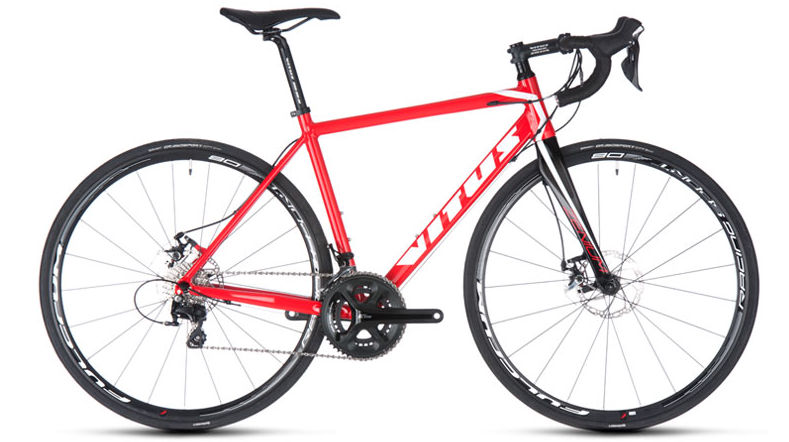

2015 Vitus Zenium Disc geometry
Full frame geometry for the 2015 Vitus Zenium Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 529 | 361 | 73 | 72.5 | 125 | 523 | 460 | 70 | 415 | 962 |
| 52 | 540 | 365 | 73 | 73 | 135 | 530 | 480 | 70 | 415 | 965 |
| 54 | 549 | 377 | 73 | 73 | 145 | 545 | 500 | 70 | 415 | 980 |
| 56 | 564 | 388 | 73 | 73 | 160 | 560 | 525 | 70 | 415 | 995 |
| 58 | 578 | 403 | 73 | 73 | 175 | 580 | 550 | 70 | 415 | 1015 |
| 60 | 597 | 413 | 73 | 73 | 195 | 595 | 570 | 70 | 415 | 1025 |
All measurements in millimetres unless marked (°) for angles.
