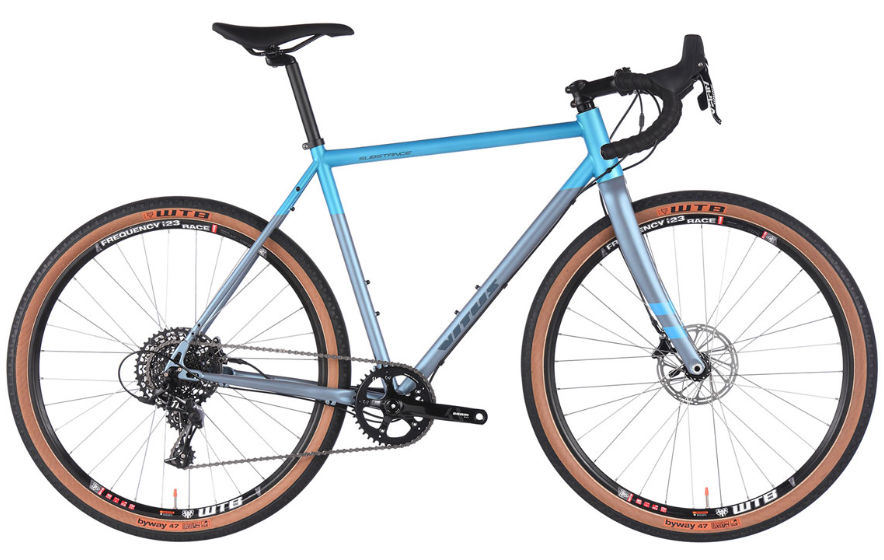

2019 Vitus Substance V2 geometry
Full frame geometry for the 2019 Vitus Substance V2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 371 | 74.2 | 70.6 | 108 | 522 | 500 | 70 | 436 | 1010 | 43 |
| S | 551 | 377 | 74 | 71.3 | 123 | 535 | 520 | 70 | 436 | 1016 | 43 |
| M | 568 | 382 | 73.5 | 71.5 | 140 | 550 | 540 | 70 | 436 | 1024 | 43 |
| L | 577 | 391 | 73.5 | 71.5 | 150 | 562 | 560 | 70 | 436 | 1036 | 43 |
| XL | 595 | 398 | 73.2 | 71.5 | 169 | 578 | 580 | 70 | 440 | 1050 | 43 |
| XXL | 606 | 412 | 73.2 | 71.8 | 180 | 595 | 600 | 70 | 440 | 1065 | 43 |
All measurements in millimetres unless marked (°) for angles.
