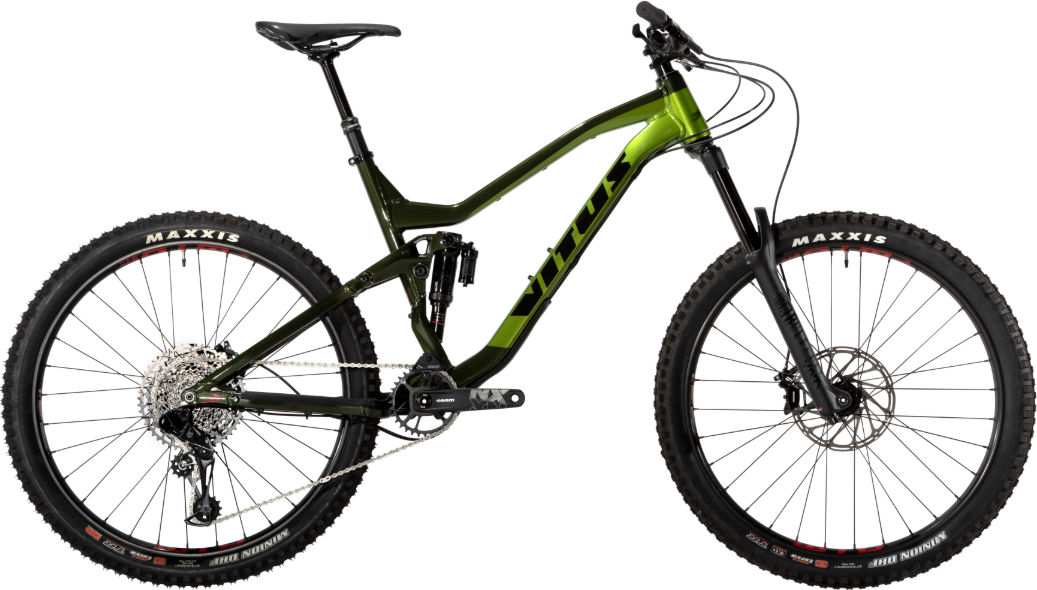

2019 Vitus Sommet MK II geometry
Full frame geometry for the 2019 Vitus Sommet MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 435 | 74.5 | 65 | 110 | 595 | 382 | 10 | 435 | 1183 | 42 |
| M | 601 | 453 | 74.5 | 65 | 120 | 616 | 433 | 10 | 435 | 1205 | 42 |
| L | 611 | 470 | 74.5 | 65 | 130 | 637 | 483 | 10 | 435 | 1226 | 42 |
| XL | 611 | 495 | 74.5 | 65 | 130 | 662 | 523 | 10 | 435 | 1251 | 42 |
All measurements in millimetres unless marked (°) for angles.
