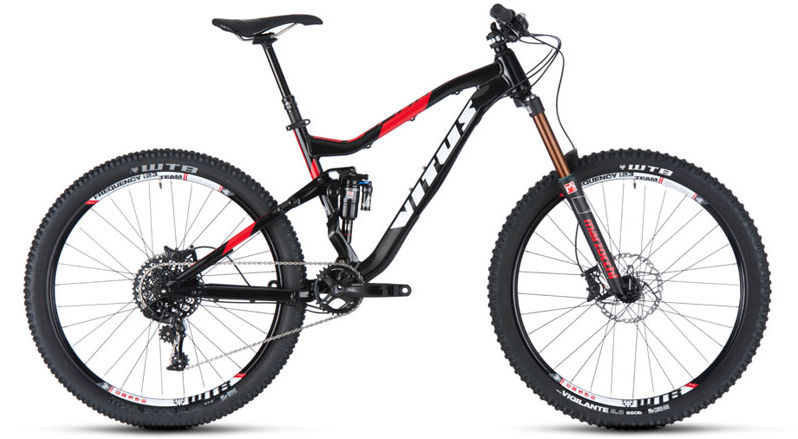

2015 Vitus Sommet MK I geometry
Full frame geometry for the 2015 Vitus Sommet MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 434 | 74.5 | 66 | 110 | 600 | 433 | 10 | 435 | 1177 |
| S | 595 | 409 | 74.5 | 66 | 110 | 575 | 382 | 10 | 435 | 1152 |
| L | 604 | 451 | 74.5 | 66 | 120 | 620 | 483 | 10 | 435 | 1199 |
| XL | 613 | 468 | 74.5 | 66 | 130 | 640 | 523 | 10 | 435 | 1220 |
All measurements in millimetres unless marked (°) for angles.
