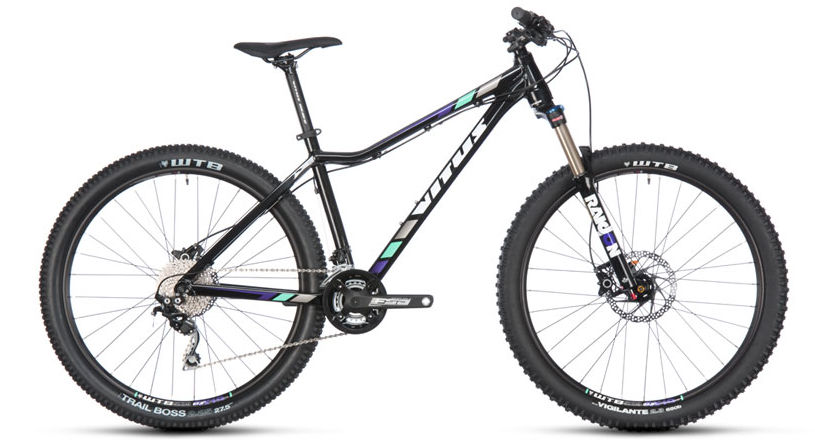

2015 Vitus Sentier L geometry
Full frame geometry for the 2015 Vitus Sentier L, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 371 | 74 | 67 | 100 | 540 | 343 | 43 | 425 | 1075 |
| M | 593 | 390 | 74 | 67 | 105 | 560 | 380 | 43 | 425 | 1096 |
| L | 598 | 414 | 74 | 67 | 110 | 585 | 432 | 43 | 425 | 1122 |
All measurements in millimetres unless marked (°) for angles.
