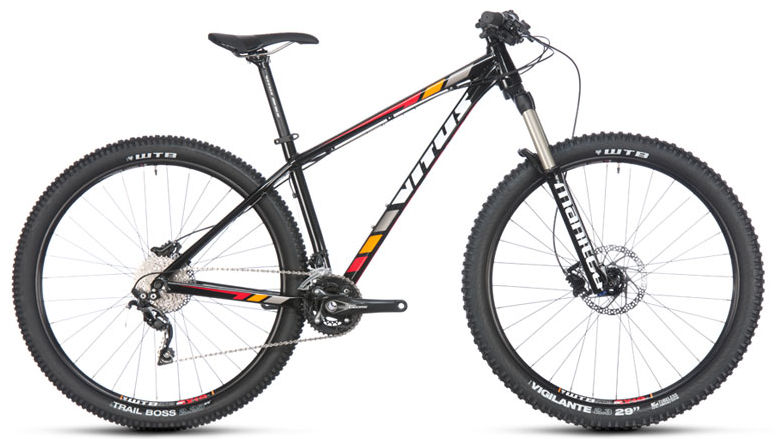

2015 Vitus Sentier 290 geometry
Full frame geometry for the 2015 Vitus Sentier 290, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 640 | 401 | 74 | 68 | 105 | 585 | 380 | 62 | 439 | 1120 |
| M | 645 | 418 | 74 | 68 | 110 | 603 | 440 | 62 | 439 | 1138 |
| L | 654 | 423 | 74 | 68 | 120 | 620 | 480 | 62 | 439 | 1156 |
| XL | 664 | 445 | 74 | 68 | 130 | 635 | 520 | 62 | 439 | 1172 |
All measurements in millimetres unless marked (°) for angles.
