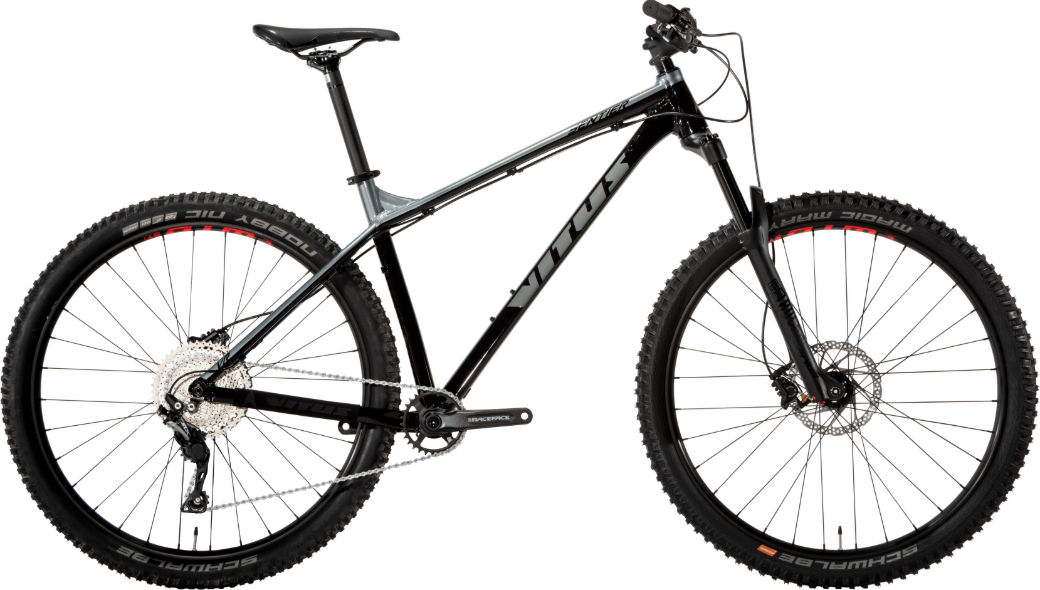

2019 Vitus Sentier 29 geometry
Full frame geometry for the 2019 Vitus Sentier 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 642 | 428 | 73 | 66.5 | 110 | 620 | 432 | 62 | 439 | 1161 | 51 |
| L | 652 | 446 | 73 | 66.5 | 120 | 640 | 483 | 62 | 439 | 1182 | 51 |
| XL | 661 | 468 | 73 | 66.5 | 130 | 665 | 520 | 62 | 439 | 1208 | 51 |
All measurements in millimetres unless marked (°) for angles.
