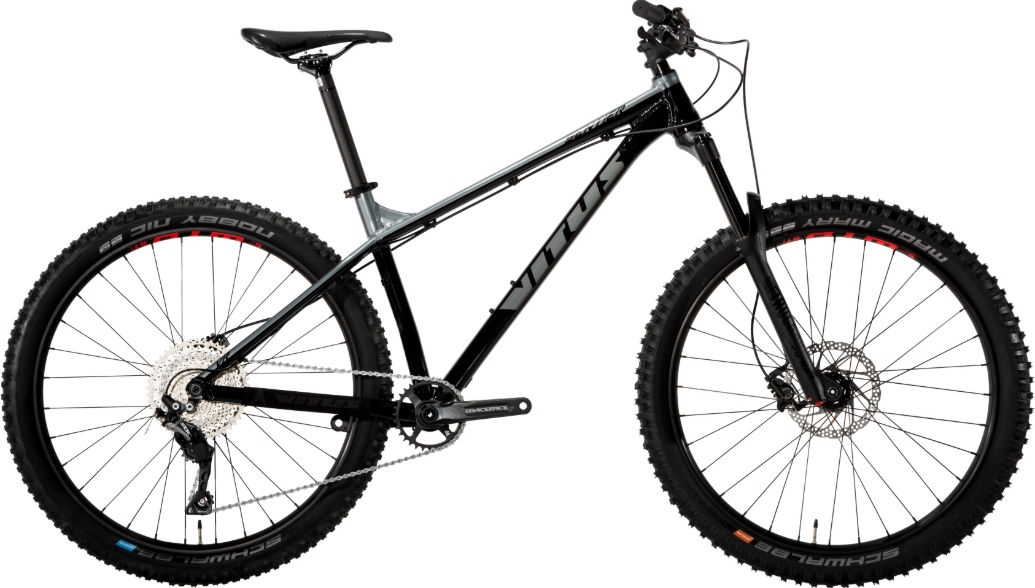

2019 Vitus Sentier 27 geometry
Full frame geometry for the 2019 Vitus Sentier 27, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 413 | 73 | 66 | 105 | 600 | 380 | 45 | 425 | 1134 | 42 |
| M | 617 | 432 | 73 | 66 | 110 | 620 | 432 | 45 | 425 | 1155 | 42 |
| L | 626 | 449 | 73 | 66 | 120 | 640 | 483 | 45 | 425 | 1176 | 42 |
| XL | 635 | 471 | 73 | 66 | 130 | 665 | 520 | 45 | 425 | 1202 | 42 |
All measurements in millimetres unless marked (°) for angles.
