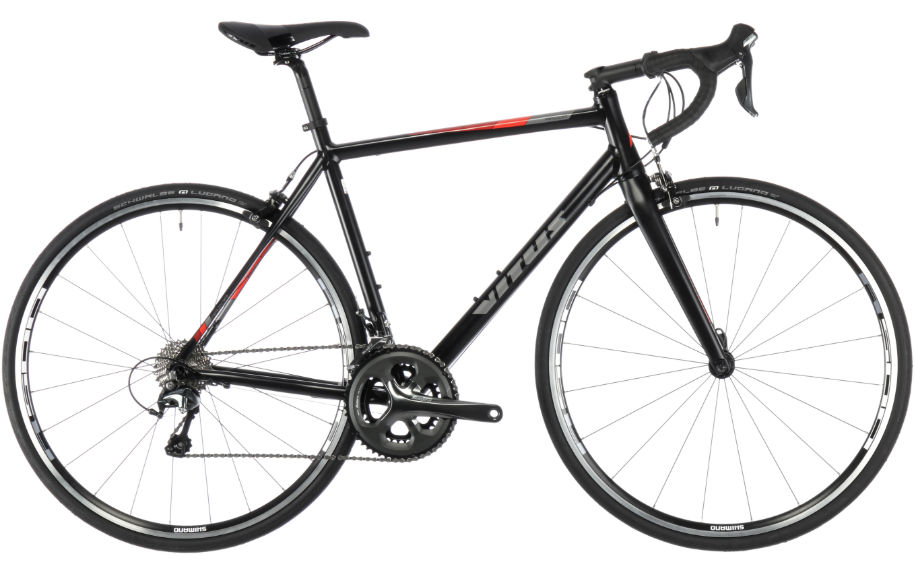

2019 Vitus Razor MK II geometry
Full frame geometry for the 2019 Vitus Razor MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 373 | 75 | 71 | 117 | 510 | 500 | 70 | 412 | 983 | 50 |
| S | 537 | 384 | 74.5 | 73 | 137 | 535 | 520 | 70 | 410 | 986 | 50 |
| M | 556 | 386 | 74 | 73 | 157 | 545 | 540 | 70 | 410 | 992 | 50 |
| L | 576 | 386 | 73.5 | 73 | 177 | 555 | 560 | 70 | 410 | 997 | 50 |
| XL | 595 | 391 | 73.2 | 73 | 197 | 570 | 580 | 70 | 410 | 1009 | 50 |
| XXL | 607 | 410 | 73.5 | 73 | 210 | 590 | 600 | 70 | 410 | 1032 | 50 |
All measurements in millimetres unless marked (°) for angles.
