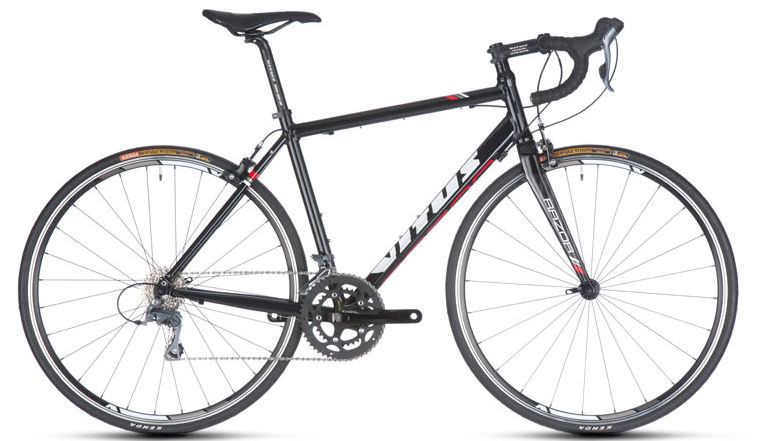

2014 Vitus Razor MK I geometry
Full frame geometry for the 2014 Vitus Razor MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 525 | 375 | 74.3 | 72.5 | 120 | 523 | 460 | 65 | 571 | 425 | 988 |
| 52 | 541 | 378 | 73.8 | 73 | 135 | 535 | 480 | 65 | 574 | 425 | 990 |
| 54 | 551 | 384 | 73.5 | 73 | 145 | 547 | 500 | 65 | 583 | 425 | 999 |
| 56 | 565 | 385 | 73 | 73 | 160 | 558 | 520 | 65 | 589 | 425 | 1005 |
| 58 | 565 | 407 | 73 | 73 | 160 | 580 | 540 | 65 | 611 | 425 | 1027 |
| 60 | 585 | 406 | 73 | 73 | 180 | 585 | 560 | 65 | 616 | 425 | 1032 |
All measurements in millimetres unless marked (°) for angles.
