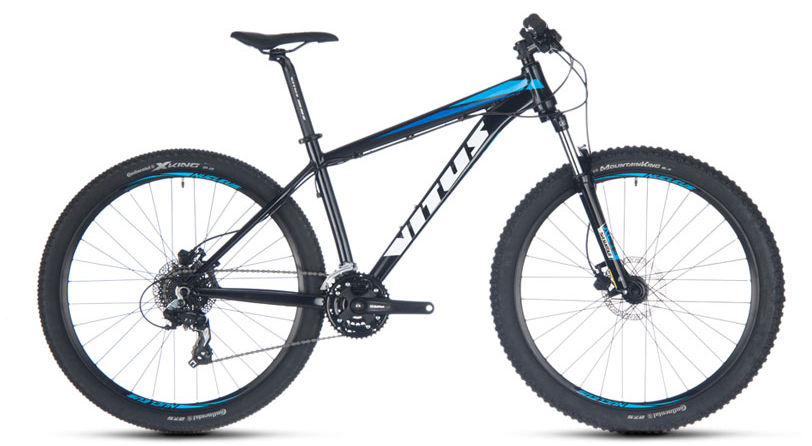

2015 Vitus Nucleus 275 geometry
Full frame geometry for the 2015 Vitus Nucleus 275, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 399 | 74 | 68 | 105 | 570 | 380 | 35 | 425 | 1092 |
| M | 602 | 422 | 74 | 68 | 110 | 595 | 432 | 35 | 425 | 1118 |
| L | 612 | 445 | 74 | 68 | 120 | 620 | 483 | 35 | 425 | 1143 |
All measurements in millimetres unless marked (°) for angles.
