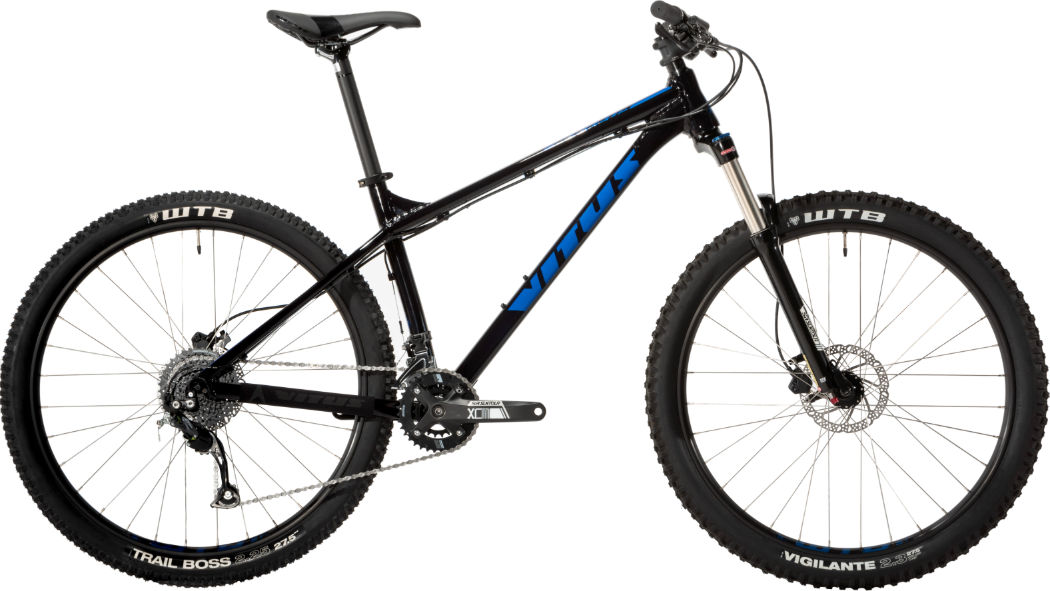

2019 Vitus Nucleus 27 geometry
Full frame geometry for the 2019 Vitus Nucleus 27, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 420 | 73 | 66.5 | 105 | 600 | 380 | 45 | 425 | 1128 | 42 |
| M | 597 | 438 | 73 | 66.5 | 110 | 620 | 432 | 45 | 425 | 1146 | 42 |
| L | 606 | 455 | 73 | 66.5 | 120 | 640 | 483 | 45 | 425 | 1167 | 42 |
| XL | 615 | 477 | 73 | 66.5 | 130 | 665 | 520 | 45 | 425 | 1196 | 42 |
All measurements in millimetres unless marked (°) for angles.
