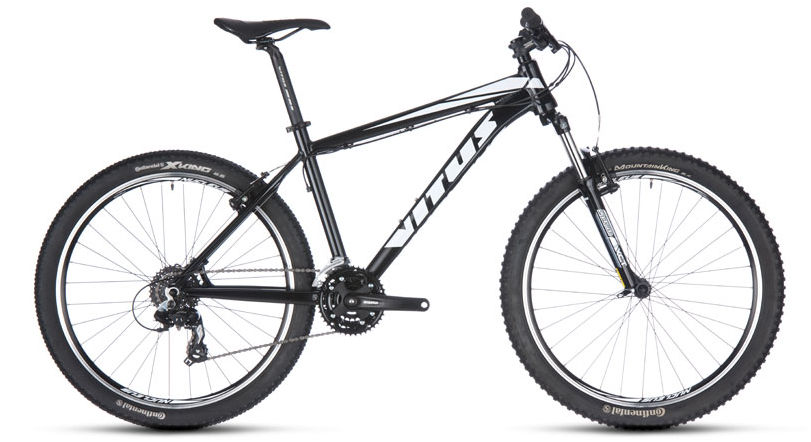

2015 Vitus Nucleus 260 geometry
Full frame geometry for the 2015 Vitus Nucleus 260, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 567 | 411 | 73 | 68 | 110 | 575 | 380 | 23 | 425 | 1087 |
| M | 577 | 419 | 73 | 68 | 120 | 595 | 432 | 23 | 425 | 1108 |
| L | 586 | 436 | 73 | 68 | 130 | 615 | 483 | 23 | 425 | 1128 |
All measurements in millimetres unless marked (°) for angles.
