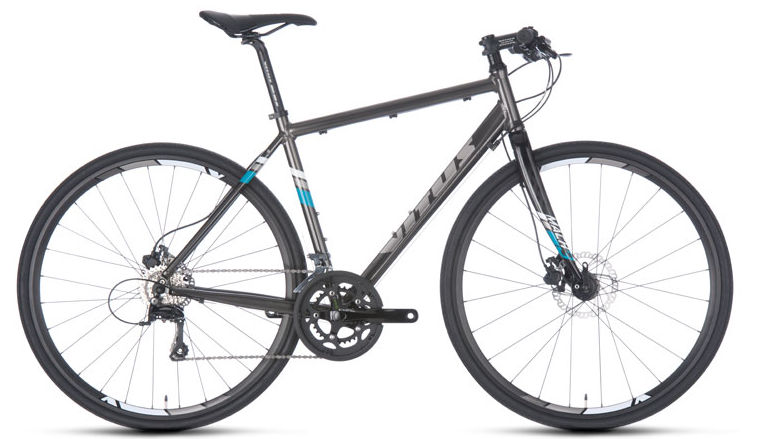

2015 Vitus Mach 3 MK I geometry
Full frame geometry for the 2015 Vitus Mach 3 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 557 | 419 | 73 | 71 | 110 | 565 | 483 | 45 | 429 | 1065 |
| S | 557 | 394 | 73 | 71 | 110 | 520 | 410 | 45 | 429 | 1040 |
All measurements in millimetres unless marked (°) for angles.
