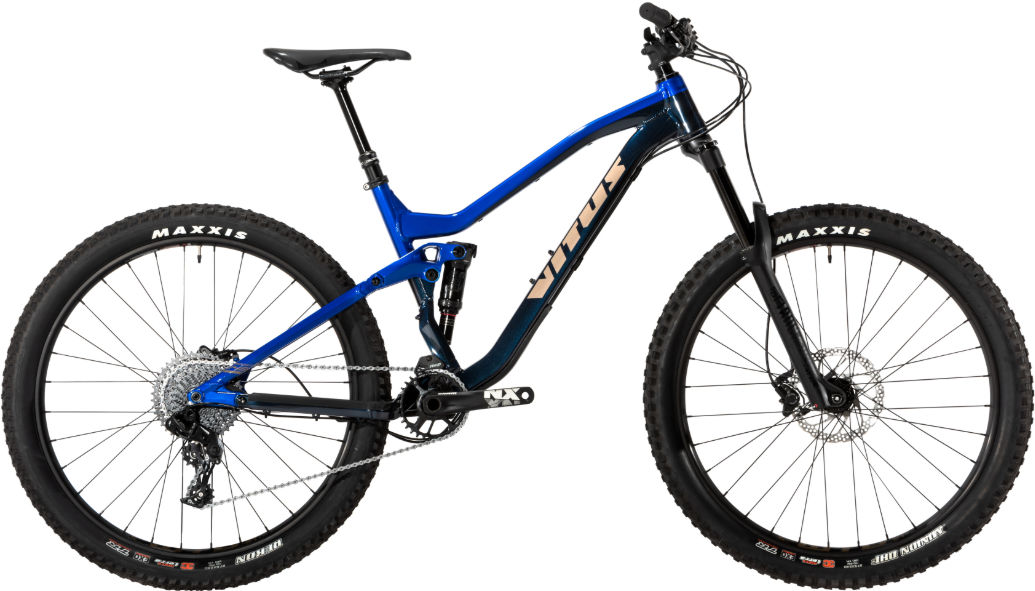

2019 Vitus Escarpe MK II geometry
Full frame geometry for the 2019 Vitus Escarpe MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 435 | 74.5 | 66 | 110 | 600 | 382 | 20 | 435 | 1166 | 42 |
| M | 598 | 453 | 74.5 | 66 | 120 | 620 | 433 | 20 | 435 | 1188 | 42 |
| L | 608 | 470 | 74.5 | 66 | 130 | 640 | 483 | 20 | 435 | 1209 | 42 |
| XL | 608 | 495 | 74.5 | 66 | 130 | 665 | 523 | 20 | 435 | 1234 | 42 |
All measurements in millimetres unless marked (°) for angles.
