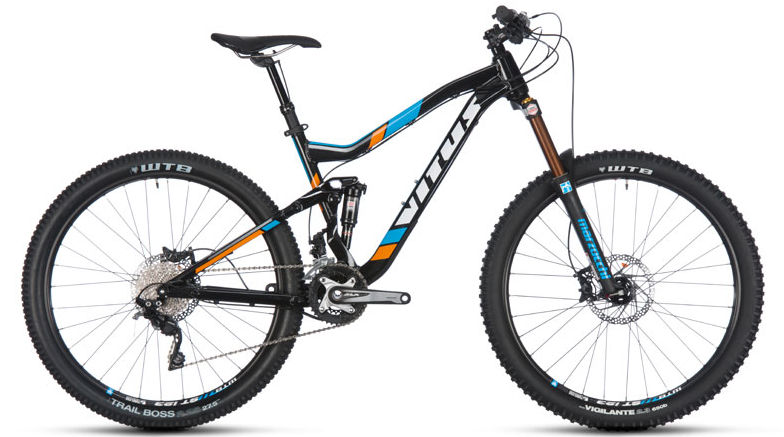

2015 Vitus Escarpe MK I geometry
Full frame geometry for the 2015 Vitus Escarpe MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 592 | 435 | 74.5 | 67 | 110 | 600 | 433 | 20 | 435 | 1161 |
| S | 592 | 410 | 74.5 | 67 | 110 | 575 | 382 | 20 | 435 | 1136 |
| L | 601 | 452 | 74.5 | 67 | 120 | 620 | 483 | 20 | 435 | 1182 |
| XL | 610 | 469 | 74.5 | 67 | 130 | 640 | 523 | 20 | 435 | 1203 |
All measurements in millimetres unless marked (°) for angles.
