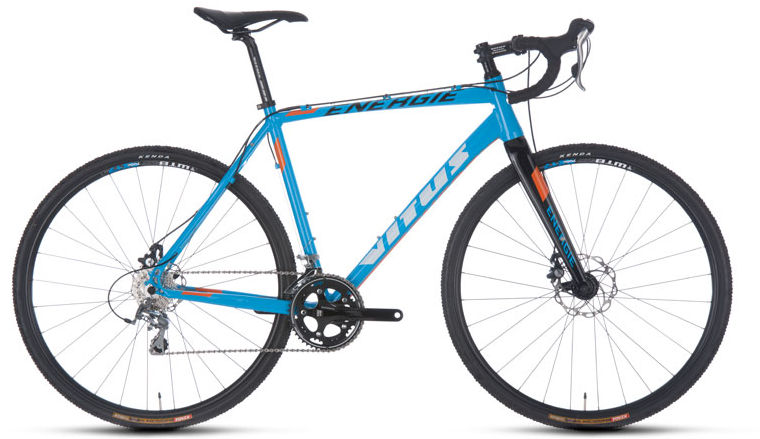

2014 Vitus Energie MK I geometry
Full frame geometry for the 2014 Vitus Energie MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 521 | 366 | 74 | 71 | 105 | 518 | 467 | 58 | 559 | 425 | 978 |
| 52 | 542 | 377 | 74 | 71.5 | 125 | 535 | 515 | 58 | 593 | 425 | 1011 |
| 55 | 570 | 384 | 74 | 71.5 | 155 | 550 | 540 | 58 | 609 | 425 | 1027 |
| 58 | 589 | 389 | 74 | 72 | 173 | 560 | 560 | 58 | 615 | 425 | 1033 |
All measurements in millimetres unless marked (°) for angles.
