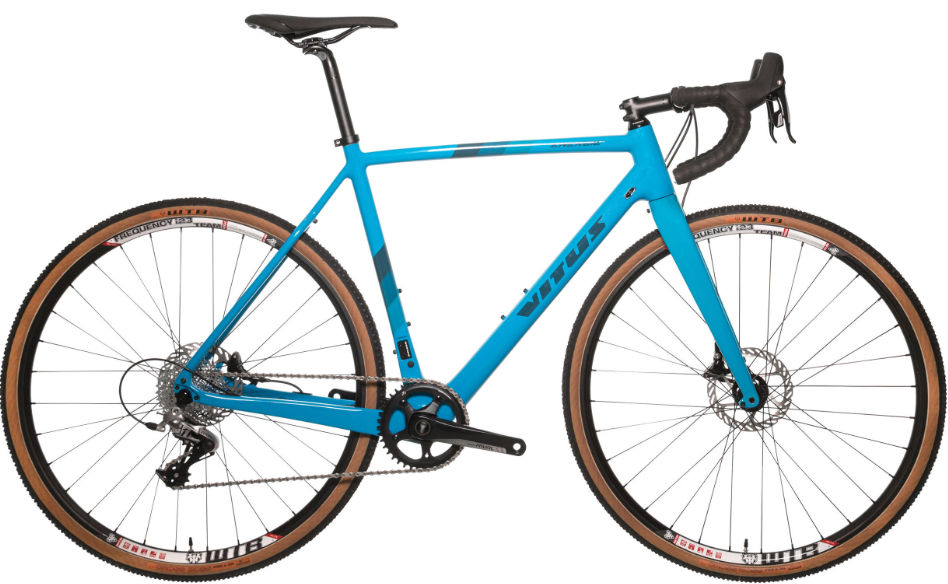

2019 Vitus Energie CR MK II geometry
Full frame geometry for the 2019 Vitus Energie CR MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 531 | 386 | 74 | 71 | 105 | 538 | 470 | 70 | 425 | 1011 | 45 |
| S | 551 | 398 | 74 | 71.3 | 125 | 555 | 490 | 70 | 425 | 1024 | 45 |
| M | 570 | 407 | 74 | 71.3 | 145 | 570 | 510 | 70 | 425 | 1040 | 45 |
| L | 585 | 417 | 74 | 71.3 | 160 | 585 | 530 | 70 | 425 | 1055 | 45 |
| XL | 597 | 429 | 74 | 71.3 | 173 | 600 | 550 | 70 | 425 | 1071 | 45 |
All measurements in millimetres unless marked (°) for angles.
