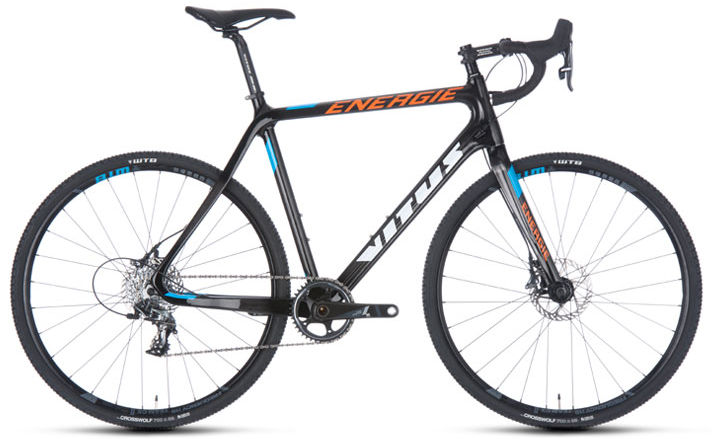

2014 Vitus Energie CR MK I geometry
Full frame geometry for the 2014 Vitus Energie CR MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51.5 | 529 | 368 | 73 | 72.5 | 125 | 530 | 515 | 47 | 575 | 430 | 1000 |
| 54.5 | 559 | 379 | 73 | 73 | 155 | 550 | 530 | 47 | 590 | 430 | 1016 |
| 56.5 | 578 | 383 | 73 | 73 | 175 | 560 | 565 | 47 | 600 | 430 | 1025 |
| 58 | 593 | 394 | 73 | 73 | 190 | 575 | 580 | 47 | 615 | 430 | 1041 |
All measurements in millimetres unless marked (°) for angles.
