2015 Vitus · MD

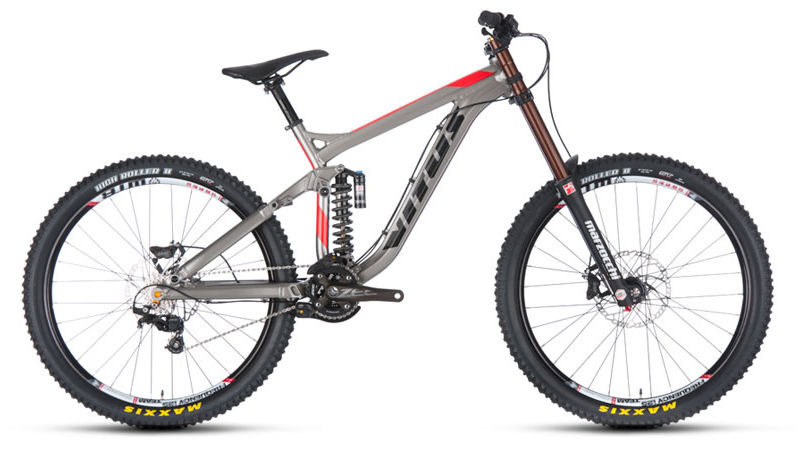

2015 Vitus Dominer MK I geometry
Full frame geometry for the 2015 Vitus Dominer MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 589 | 449 | 61.5 | 63 | 110 | 632 | 458 | 0 | 448 | 1244 |
| M | 589 | 424 | 61.5 | 63 | 110 | 607 | 445 | 0 | 448 | 1219 |
| S | 589 | 399 | 61.5 | 63 | 110 | 582 | 432 | 0 | 448 | 1194 |
All measurements in millimetres unless marked (°) for angles.
