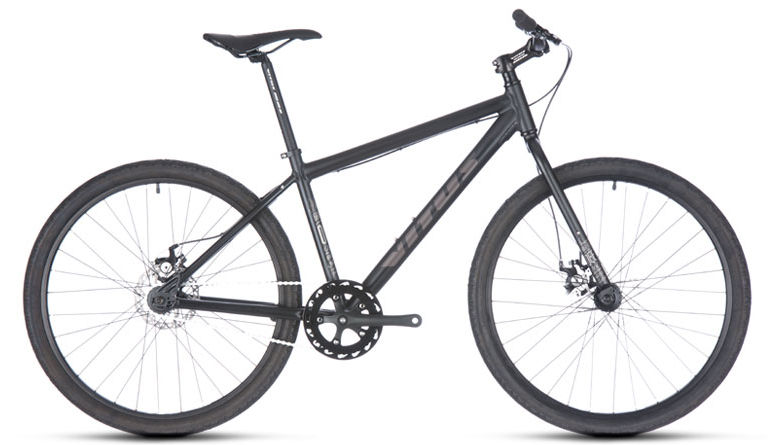

2015 Vitus Dee 260 geometry
Full frame geometry for the 2015 Vitus Dee 260, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S/49 | 570 | 410 | 73 | 70.5 | 165 | 580 | 470 | 705 | 55 | 440 | 1075 |
| M/53 | 580 | 415 | 73 | 70.5 | 175 | 590 | 510 | 745 | 55 | 440 | 1085 |
| L/57 | 610 | 420 | 73 | 71 | 205 | 605 | 550 | 785 | 55 | 445 | 1100 |
| XL/61 | 640 | 420 | 73 | 71 | 240 | 615 | 590 | 820 | 55 | 445 | 1110 |
All measurements in millimetres unless marked (°) for angles.
