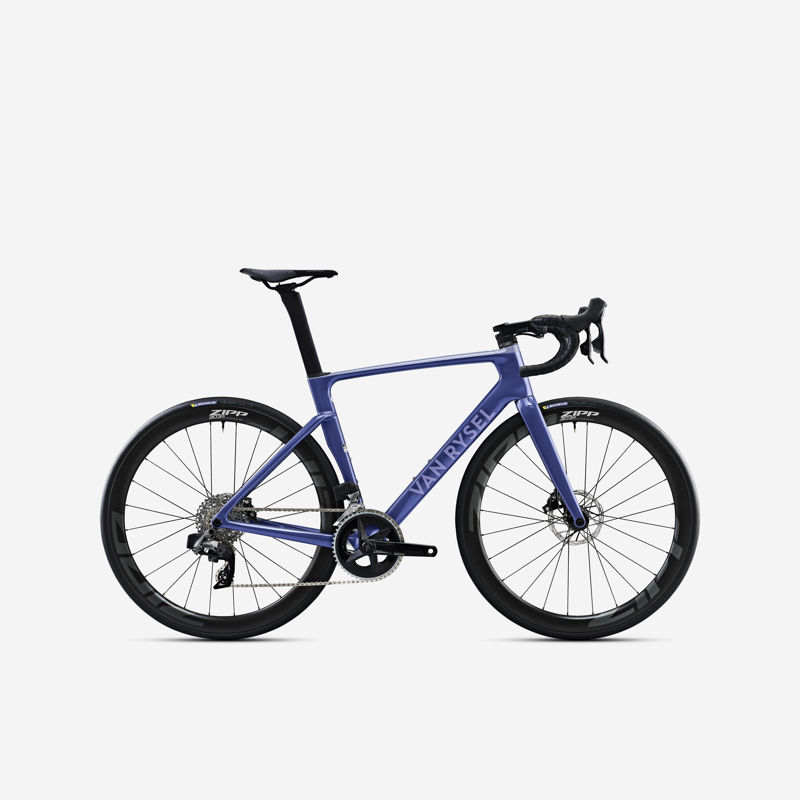

2024 Van Rysel RCR geometry
Full frame geometry for the 2024 Van Rysel RCR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 509 | 378.3 | 75.5 | 71 | 109 | 516.2 | 453 | 73 | 410 | 979.6 |
| XS | 515 | 382.5 | 74 | 72 | 114 | 536.4 | 463 | 70 | 410 | 978.2 |
| S | 531 | 385.7 | 74 | 73 | 131 | 544.4 | 473 | 67 | 410 | 979.1 |
| M | 546 | 388.2 | 73.5 | 73 | 147 | 556.4 | 483 | 67 | 410 | 986 |
| L | 572 | 395.6 | 73.5 | 73 | 174 | 571.4 | 513 | 67 | 410 | 1001.5 |
| XL | 596.1 | 408.4 | 73.5 | 73 | 199 | 591.4 | 543 | 67 | 410 | 1021.7 |
All measurements in millimetres unless marked (°) for angles.
