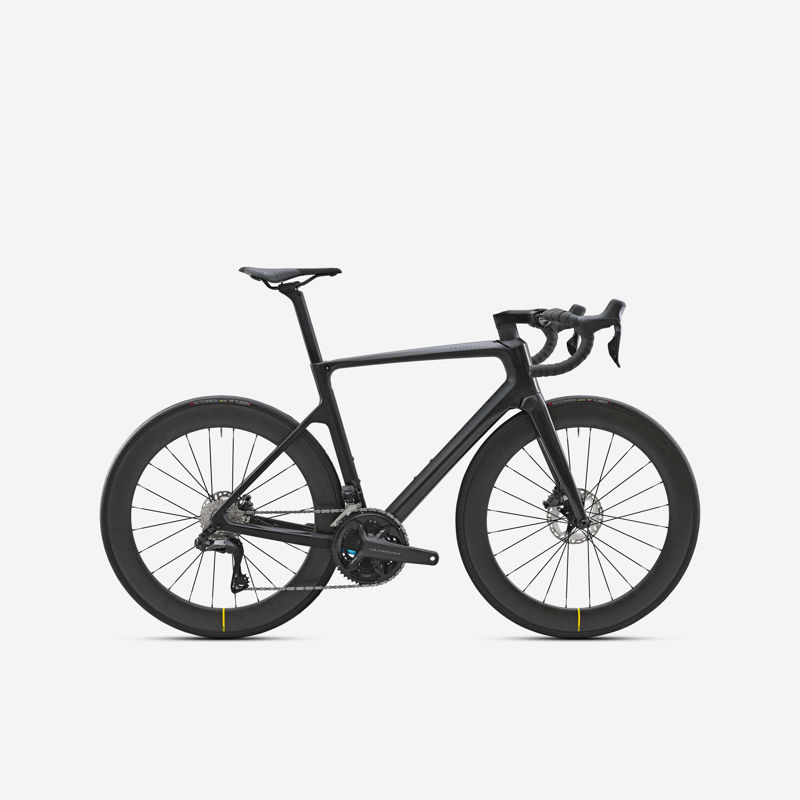

2024 Van Rysel FCR geometry
Full frame geometry for the 2024 Van Rysel FCR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 522 | 374 | 74 | 72 | 124 | 524 | 490 | 68 | 408 | 971 | 45 |
| M | 538.7 | 383 | 74 | 72 | 138 | 538 | 515 | 68 | 408 | 976 | 45 |
| L | 560 | 391 | 73.5 | 73 | 160 | 557 | 550 | 68 | 408 | 991 | 45 |
| XL | 582.4 | 397 | 73.5 | 74 | 180 | 569 | 575 | 68 | 408 | 993.6 | 45 |
All measurements in millimetres unless marked (°) for angles.
