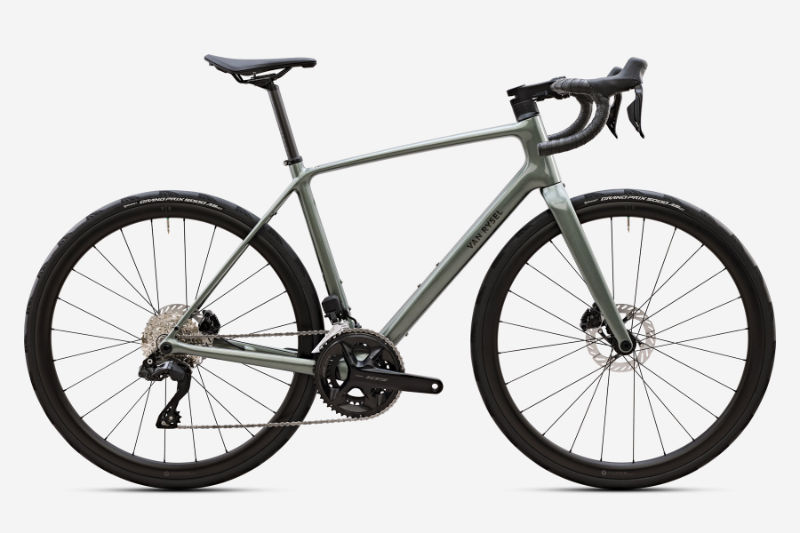

2026 Van Rysel EDR CF Ultra geometry
Full frame geometry for the 2026 Van Rysel EDR CF Ultra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 375 | 75.1 | 70 | 115 | 515 | 450 | 67 | 425 | 1010 | 45 |
| S | 540 | 380 | 74.6 | 71 | 130 | 530 | 480 | 67 | 425 | 1012 | 45 |
| M | 568 | 380 | 73.5 | 72 | 155 | 548 | 500 | 67 | 425 | 1015 | 45 |
| L | 601 | 386 | 73.5 | 73 | 185 | 564 | 520 | 67 | 425 | 1016 | 45 |
| XL | 630 | 388 | 72.9 | 73 | 215 | 580 | 530 | 67 | 425 | 1026 | 45 |
All measurements in millimetres unless marked (°) for angles.
