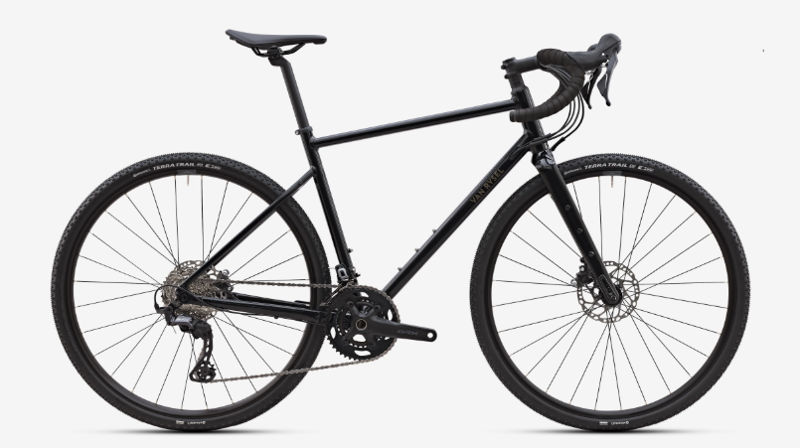

2025 Van Rysel Grvl AF geometry
Full frame geometry for the 2025 Van Rysel Grvl AF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 372 | 73.5 | 70 | 115 | 530 | 450 | 67 | 435 | 1020 | 45 |
| S | 549 | 378 | 73.5 | 70 | 130 | 540 | 480 | 67 | 435 | 1031 | 45 |
| M | 572 | 391 | 73.5 | 70 | 155 | 560 | 500 | 67 | 435 | 1052 | 45 |
| L | 600 | 397 | 73.5 | 70 | 185 | 575 | 520 | 67 | 435 | 1069 | 45 |
| XL | 629 | 404 | 73.5 | 70 | 215 | 590 | 530 | 67 | 435 | 1086 | 45 |
All measurements in millimetres unless marked (°) for angles.
