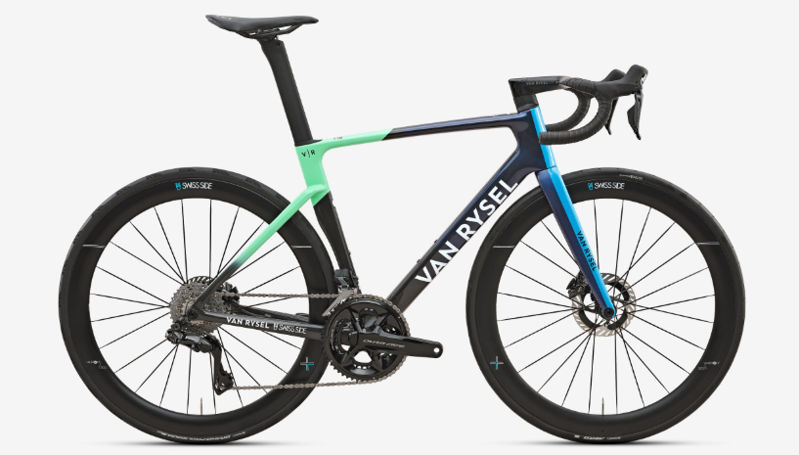

2025 Van Rysel RCR Pro geometry
Full frame geometry for the 2025 Van Rysel RCR Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 382.5 | 74 | 72 | 114 | 536.4 | 463 | 70 | 410 | 978.2 | 45 |
| S | 531 | 385.7 | 74 | 73 | 131 | 544.4 | 473 | 67 | 410 | 979.1 | 45 |
| M | 556 | 388.2 | 73.5 | 73 | 147 | 556.4 | 483 | 67 | 410 | 986 | 45 |
| L | 572 | 395.5 | 73.5 | 73 | 174 | 571.4 | 513 | 67 | 410 | 1001.5 | 45 |
| XL | 596 | 408.4 | 73.5 | 73 | 199 | 591.4 | 543 | 67 | 410 | 1021.7 | 45 |
All measurements in millimetres unless marked (°) for angles.
