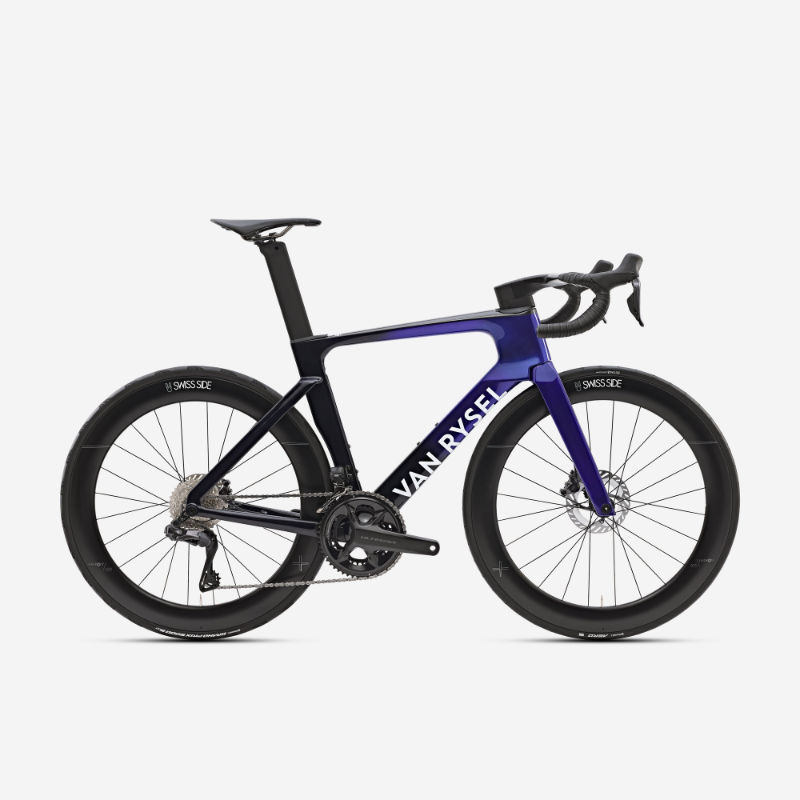

2027 Van Rysel RCR-F Pro geometry
Full frame geometry for the 2027 Van Rysel RCR-F Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 386 | 74 | 72 | 97 | 531 | 467 | 70 | 410 | 978 | 45 |
| S | 520 | 389 | 74 | 73 | 114 | 540 | 477 | 67 | 410 | 979 | 45 |
| M | 535 | 392 | 73.5 | 73 | 130 | 552 | 487 | 67 | 410 | 986 | 45 |
| L | 561 | 399 | 73.5 | 73 | 157 | 566 | 518 | 67 | 410 | 1002 | 45 |
| XL | 585 | 412 | 73.5 | 73 | 182 | 587 | 547 | 67 | 410 | 1022 | 45 |
All measurements in millimetres unless marked (°) for angles.
