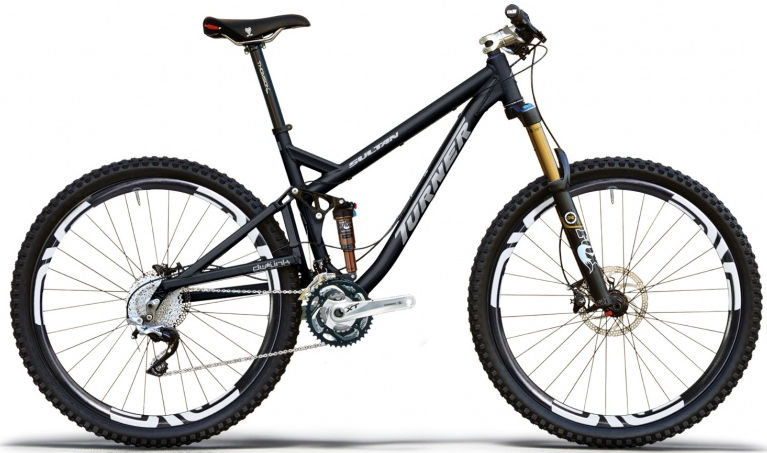

2015 Turner Sultan V2.2 geometry
Full frame geometry for the 2015 Turner Sultan V2.2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 612 | 409 | 73 | 68 | 94 | 584 | 432 | 787 | 462 |
| L | 627 | 414 | 73 | 68 | 115 | 599 | 482 | 800 | 462 |
| XL | 650 | 437 | 73 | 68 | 135 | 622 | 533 | 838 | 462 |
| XX | 668 | 447 | 73 | 68 | 155 | 643 | 584 | 864 | 462 |
All measurements in millimetres unless marked (°) for angles.
