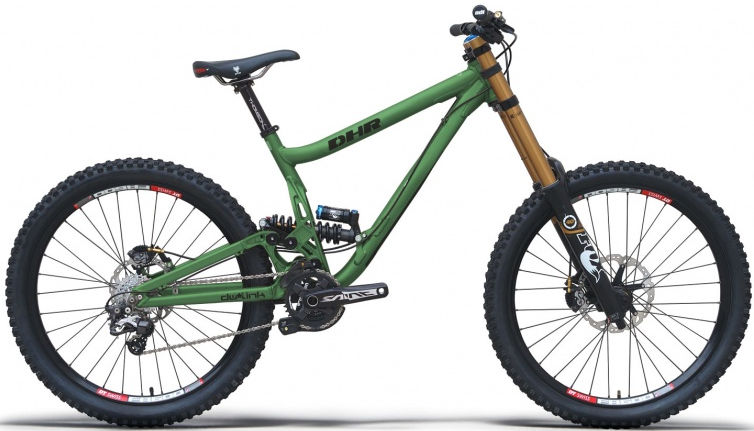

2015 Turner DHR V5.0 geometry
Full frame geometry for the 2015 Turner DHR V5.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| SM | 574 | 366 | 63 | 89 | 368 | 724 | 442 | 1158 |
| M | 582 | 394 | 63 | 102 | 396 | 759 | 442 | 1189 |
| L | 592 | 406 | 63 | 109 | 422 | 780 | 442 | 1201 |
| XL | 599 | 424 | 63 | 119 | 422 | 785 | 442 | 1232 |
All measurements in millimetres unless marked (°) for angles.
