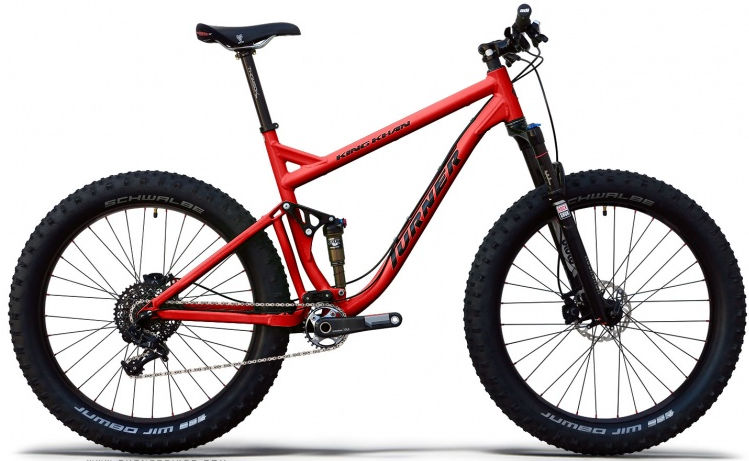

2015 Turner King Khan V1.0 geometry
Full frame geometry for the 2015 Turner King Khan V1.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 397 | 73 | 69.5 | 95 | 584 | 432 | 765 | 462 | 1130 |
| SM | 613 | 378 | 73 | 69.5 | 95 | 565 | 381 | 768 | 462 | 1111 |
| L | 631 | 421 | 73 | 69.5 | 115 | 614 | 482 | 796 | 462 | 1161 |
| XL | 650 | 434 | 73 | 69.5 | 135 | 633 | 533 | 819 | 462 | 1181 |
All measurements in millimetres unless marked (°) for angles.
