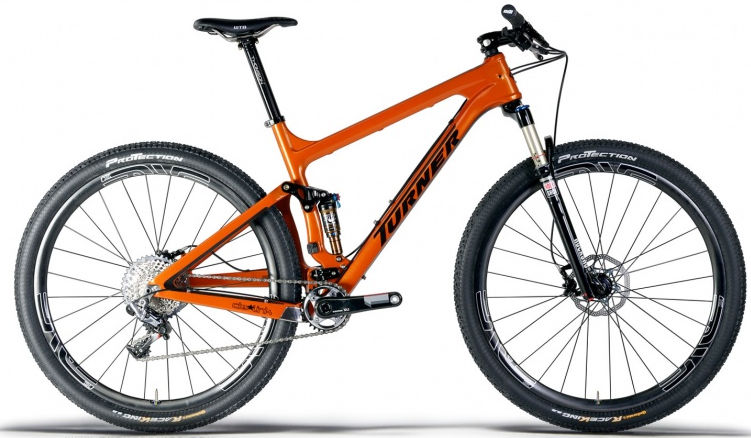

2015 Turner Czar V1.0 geometry
Full frame geometry for the 2015 Turner Czar V1.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 601 | 408 | 73 | 68 | 102 | 584 | 432 | 762 | 442 | 1111 |
| L | 618 | 421 | 73 | 68 | 119 | 605 | 482 | 787 | 442 | 1124 |
| XL | 632 | 434 | 73 | 68 | 135 | 627 | 533 | 813 | 442 | 1137 |
| XX | 646 | 451 | 73 | 68 | 155 | 648 | 584 | 838 | 442 | 1165 |
All measurements in millimetres unless marked (°) for angles.
