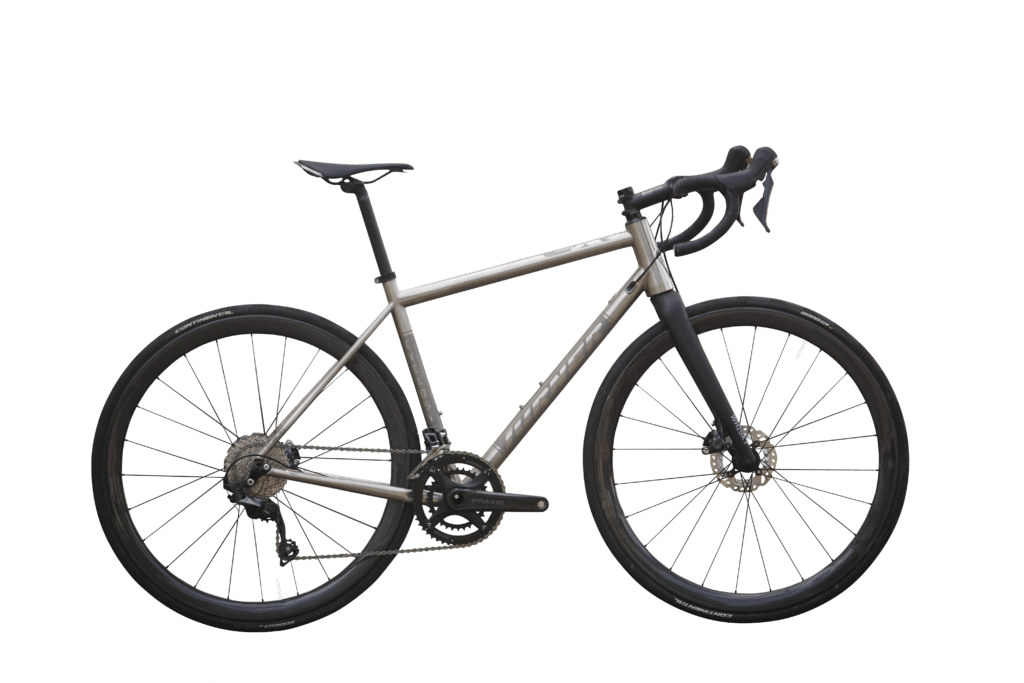

2019 Turner Cyclolsys ART geometry
Full frame geometry for the 2019 Turner Cyclolsys ART, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 365 | 74 | 71.5 | 115 | 518 | 430 | 730 | 73 | 420 | 992 |
| SM | 550 | 372 | 74 | 71.5 | 135 | 530 | 460 | 755 | 73 | 420 | 1005 |
| M | 570 | 380 | 73.5 | 71.5 | 160 | 549 | 490 | 780 | 70 | 420 | 1020 |
| L | 589 | 395 | 73.5 | 71.5 | 180 | 567 | 530 | 810 | 70 | 420 | 1040 |
| XL | 610 | 405 | 73 | 71.5 | 205 | 591 | 550 | 830 | 67 | 420 | 1060 |
| XX | 628 | 415 | 73 | 71.5 | 225 | 608 | 580 | 855 | 67 | 420 | 1076 |
All measurements in millimetres unless marked (°) for angles.
