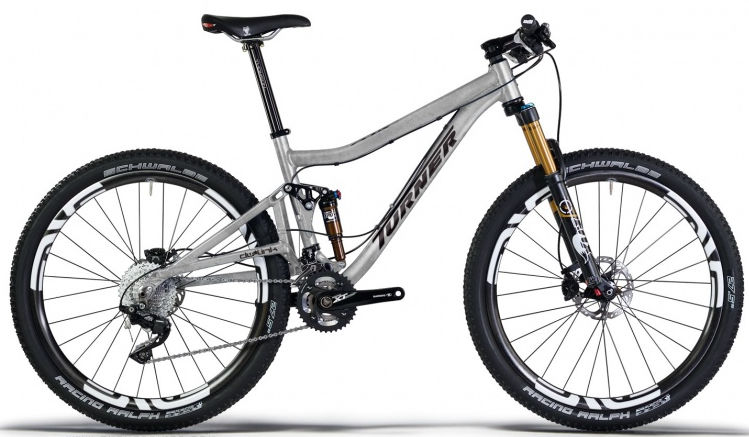

2015 Turner Flux V3.0 geometry
Full frame geometry for the 2015 Turner Flux V3.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 581 | 419 | 73 | 68 | 94 | 595 | 432 | 762 | 442 | 1124 |
| SM | 581 | 396 | 73 | 68 | 94 | 574 | 381 | 737 | 442 | 1102 |
| L | 601 | 436 | 73 | 68 | 115 | 612 | 482 | 800 | 442 | 1165 |
| XL | 619 | 454 | 73 | 68 | 135 | 635 | 533 | 826 | 442 | 1181 |
All measurements in millimetres unless marked (°) for angles.
