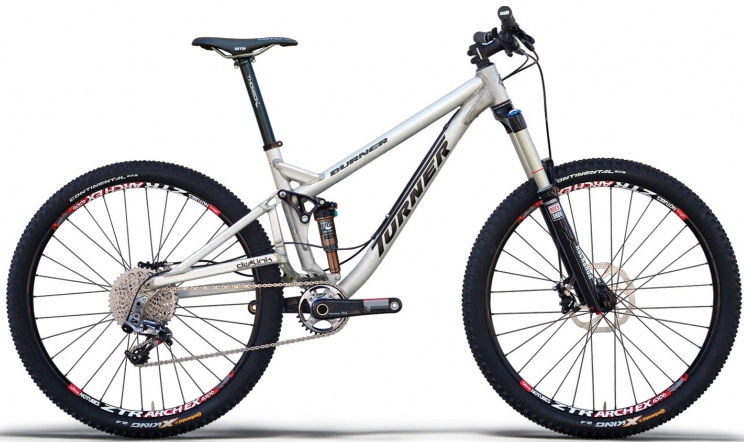

2015 Turner Burner V3.0 geometry
Full frame geometry for the 2015 Turner Burner V3.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 412 | 73 | 67 | 95 | 594 | 432 | 762 | 447 |
| SM | 595 | 389 | 73 | 67 | 95 | 572 | 381 | 737 | 447 |
| L | 615 | 432 | 73 | 67 | 115 | 620 | 482 | 800 | 447 |
| XL | 632 | 455 | 73 | 67 | 135 | 648 | 533 | 829 | 447 |
| XX | 653 | 470 | 73 | 67 | 155 | 671 | 584 | 861 | 447 |
All measurements in millimetres unless marked (°) for angles.
