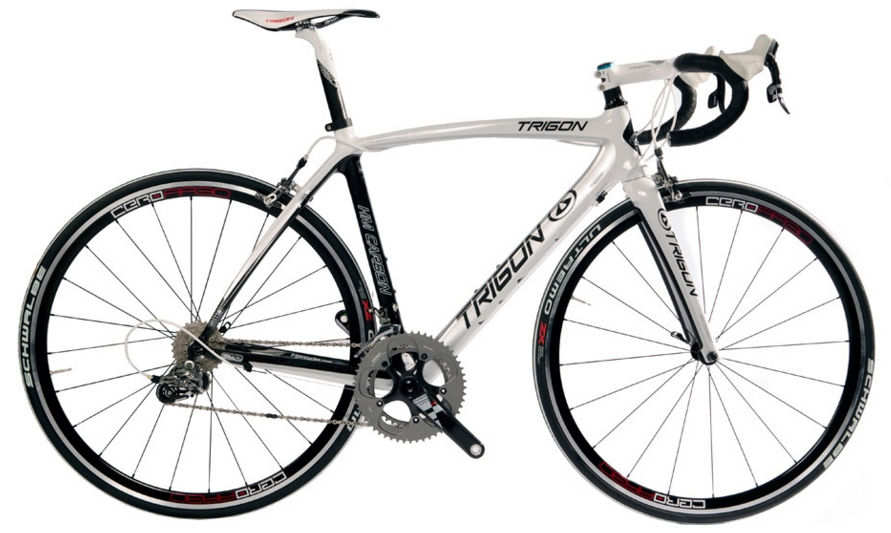

2015 Trigon RQC29 geometry
Full frame geometry for the 2015 Trigon RQC29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 370 | 75 | 70.5 | 110 | 505 | 460 | 574 | 67 | 574 | 405 | 970 | 43 |
| S | 519 | 381 | 75 | 72 | 120 | 520 | 490 | 577 | 67 | 577 | 405 | 672 | 43 |
| M | 542 | 385 | 74.5 | 73 | 140 | 535 | 520 | 579 | 67 | 579 | 405 | 674 | 43 |
| L | 567 | 387 | 73.5 | 73 | 170 | 555 | 550 | 589 | 64 | 589 | 405 | 686 | 43 |
| XL | 586 | 401 | 73 | 73 | 190 | 580 | 580 | 609 | 64 | 609 | 405 | 1005 | 43 |
All measurements in millimetres unless marked (°) for angles.
