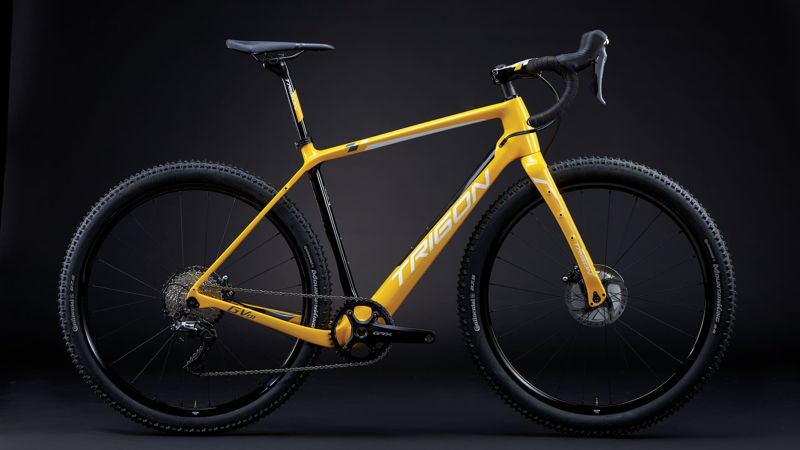

2022 Trigon GV01 geometry
Full frame geometry for the 2022 Trigon GV01, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 440(XS) | 535.5 | 362 | 74 | 69.5 | 110 | 516 | 440 | 80 | 591.6 | 1008.6 |
| 470(S) | 560 | 370 | 74 | 71 | 130 | 531 | 470 | 80 | 594 | 1011.1 |
| 500(M) | 578 | 382 | 73.5 | 72 | 145 | 553 | 500 | 80 | 601.8 | 1019 |
| 530(L) | 592.4 | 389 | 73 | 72 | 160 | 570 | 530 | 80 | 613.2 | 1030.4 |
| 560(XL) | 602 | 406 | 73 | 72 | 170 | 590 | 560 | 80 | 633 | 1050.6 |
All measurements in millimetres unless marked (°) for angles.
