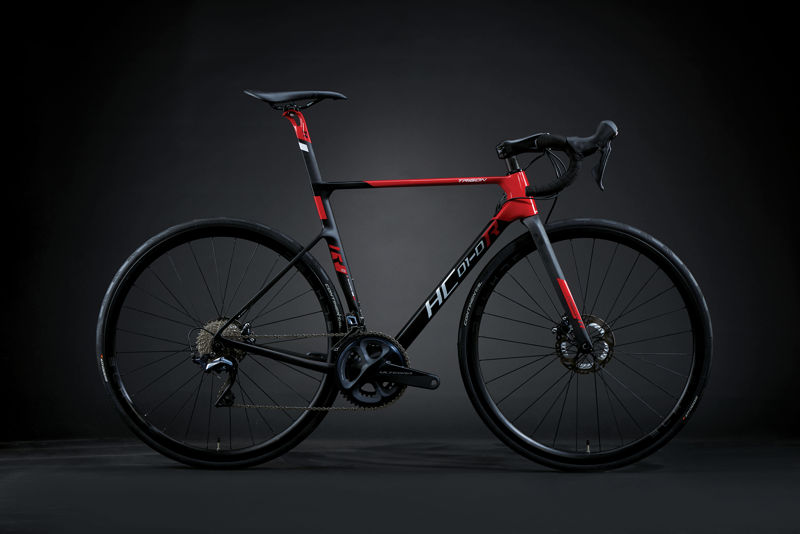

2022 Trigon HC01 geometry
Full frame geometry for the 2022 Trigon HC01, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 460(XS) | 501.6 | 360 | 74.5 | 70.5 | 100 | 460 | 71 | 949.6 |
| 490(S) | 514.5 | 370 | 74 | 71.5 | 110 | 490 | 71 | 955.6 |
| 520(M) | 524.3 | 380 | 73.5 | 72.5 | 120 | 520 | 68 | 966.2 |
| 550(L) | 535.5 | 395 | 73 | 73 | 130 | 550 | 68 | 974.4 |
| 580(XL) | 546.7 | 410 | 73 | 73.5 | 140 | 580 | 68 | 989.8 |
All measurements in millimetres unless marked (°) for angles.
