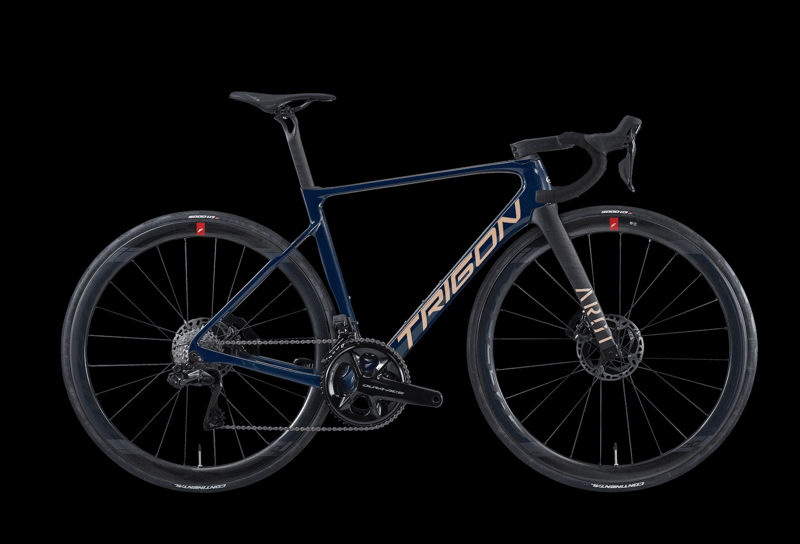

2022 Trigon AR01 geometry
Full frame geometry for the 2022 Trigon AR01, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 460 | 499.6 | 366.9 | 75.3 | 70.8 | 90.8 | 501.8 | 77.7 | 577.7 | 969.9 | 52 | 66.1 |
| 490 | 511.5 | 371.9 | 74.7 | 71.7 | 102 | 514.8 | 75.6 | 578.6 | 971.5 | 52 | 59.8 |
| 520 | 531 | 382.9 | 74 | 72.8 | 122.8 | 535.2 | 71 | 574.8 | 969.2 | 43 | 61.3 |
| 550 | 555 | 393 | 73.7 | 73.6 | 145.1 | 555.3 | 71 | 584.6 | 979 | 43 | 56.2 |
| 580 | 595 | 405 | 73 | 73.6 | 187.8 | 586.9 | 70 | 608.5 | 1003.3 | 43 | 56.2 |
All measurements in millimetres unless marked (°) for angles.
