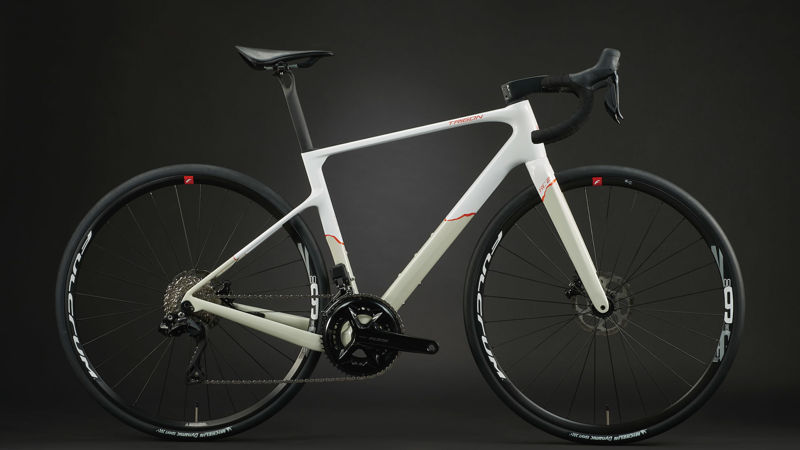

2023 Trigon RC 2 geometry
Full frame geometry for the 2023 Trigon RC 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 365 | 74 | 70 | 105.4 | 517 | 400 | 710.3 | 78 | 582.7 | 1000.3 | 45 | 77 |
| S | 555 | 370 | 74 | 71 | 127.9 | 529.1 | 430 | 727.3 | 78 | 587 | 1004.7 | 45 | 70.5 |
| M | 570 | 375 | 73 | 71.5 | 145 | 549.3 | 470 | 760.6 | 75 | 592.8 | 1011.5 | 45 | 67.3 |
| L | 590 | 377 | 73 | 72 | 164.1 | 557.4 | 520 | 798.4 | 75 | 596.4 | 1015.1 | 45 | 64.1 |
| XL | 625 | 381 | 73 | 72.5 | 198.8 | 572.1 | 530 | 818.8 | 75 | 606.3 | 1025 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
