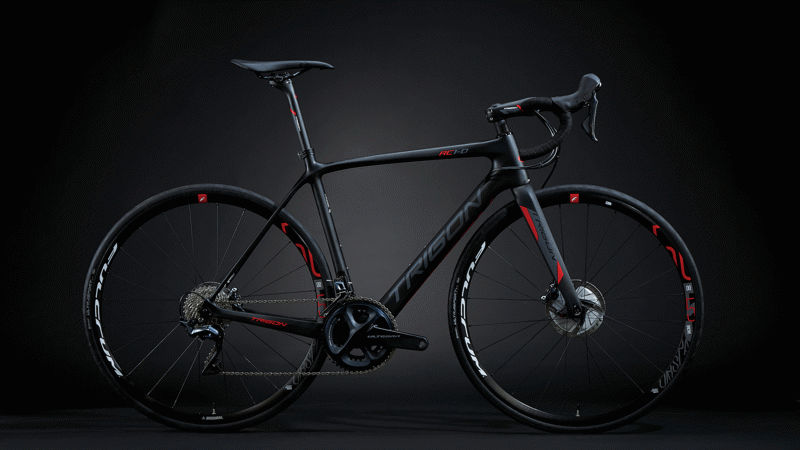

2022 Trigon RC1-D geometry
Full frame geometry for the 2022 Trigon RC1-D, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 460(XS) | 500.8 | 370.9 | 75 | 70.5 | 110 | 505 | 460 | 67 | 574.1 | 974.7 |
| 490(S) | 515.4 | 382.1 | 75 | 72 | 120 | 520 | 490 | 67 | 576.9 | 977.5 |
| 520(M) | 537.7 | 385.9 | 74.5 | 73 | 140 | 535 | 520 | 67 | 578.7 | 979.2 |
| 550(L) | 563.5 | 388.1 | 73.5 | 73 | 170 | 555 | 550 | 64 | 589.2 | 990.7 |
| 580(XL) | 582.6 | 401.9 | 73 | 73 | 190 | 580 | 580 | 64 | 608.8 | 1010.4 |
All measurements in millimetres unless marked (°) for angles.
