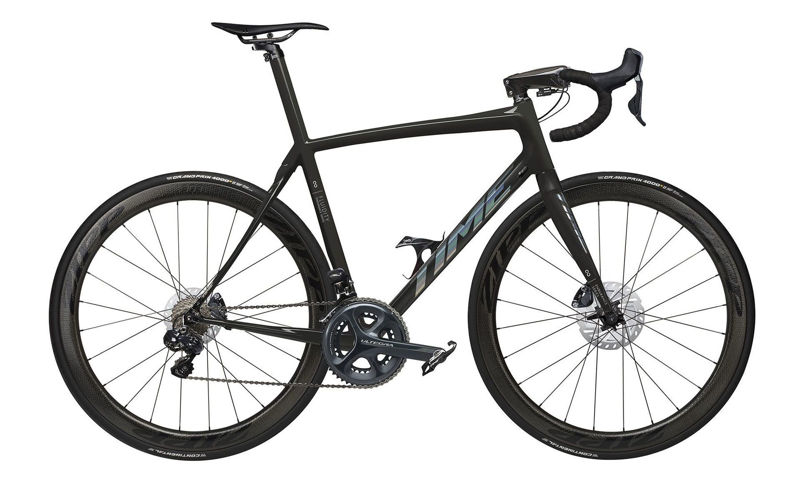

2021 Time Fluidity geometry
Full frame geometry for the 2021 Time Fluidity, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XXXS | 513 | 367 | 75.5 | 70.5 | 470 | 575 | 402 | 965 |
| XXS | 537 | 364 | 74.7 | 71 | 495 | 576 | 402 | 968 |
| XS | 546 | 368 | 73.7 | 71.5 | 510 | 578 | 402 | 968 |
| S | 562 | 367 | 73 | 72 | 530 | 578 | 404 | 971 |
| M | 580 | 378 | 73 | 73 | 550 | 584 | 404 | 978 |
| L | 596 | 388 | 73 | 73 | 570 | 599 | 404 | 993 |
| XL | 615 | 392 | 73 | 73.5 | 590 | 604 | 404 | 998 |
All measurements in millimetres unless marked (°) for angles.
