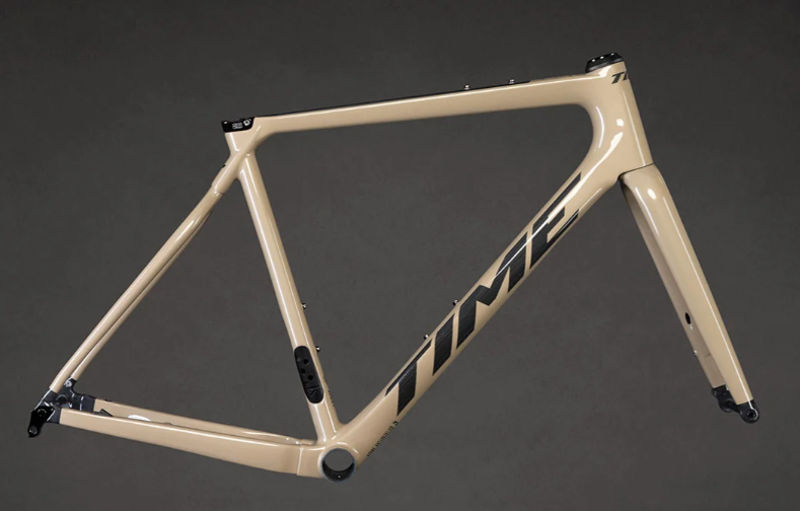

2025 Time ADHX 45 geometry
Full frame geometry for the 2025 Time ADHX 45, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 364 | 73.5 | 70.3 | 123 | 519 | 455 | 589 | 430 | 1009 | 53 | 71 |
| S | 543 | 371 | 72.8 | 71.3 | 131 | 537 | 480 | 591 | 430 | 1011 | 53 | 65 |
| M | 564 | 381 | 72.8 | 72.3 | 149 | 553 | 500 | 598 | 430 | 1018 | 53 | 59 |
| L | 583 | 390 | 72.8 | 72.3 | 169 | 568 | 530 | 613 | 430 | 1033 | 53 | 59 |
| XL | 603 | 395 | 72.8 | 72.8 | 188 | 578 | 550 | 618 | 430 | 1038 | 53 | 57 |
All measurements in millimetres unless marked (°) for angles.
