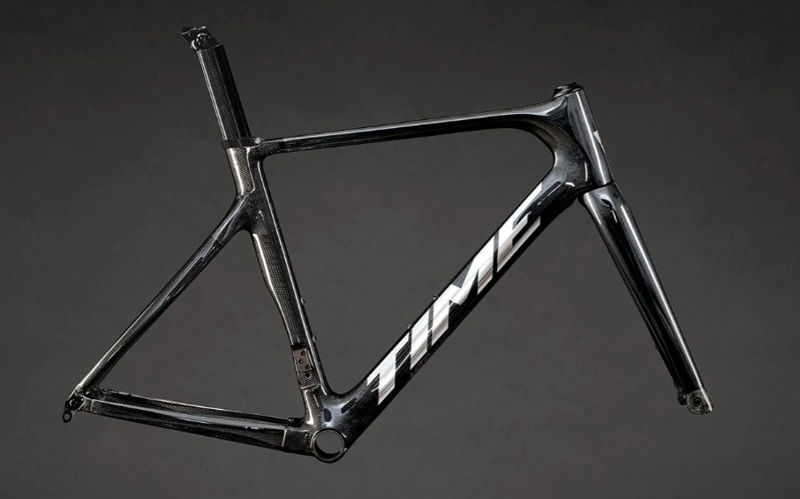

2025 Time Scylon geometry
Full frame geometry for the 2025 Time Scylon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 515 | 372 | 73 | 71.5 | 120 | 529 | 470 | 67 | 579 | 410 | 980 | 50 | 62 |
| XS | 532 | 377 | 73 | 71.5 | 138 | 540 | 485 | 67 | 590 | 410 | 991 | 50 | 62 |
| S | 549 | 382 | 73 | 71.5 | 154 | 549 | 505 | 67 | 595 | 410 | 996 | 50 | 62 |
| M | 567 | 389 | 73 | 72 | 167 | 560 | 525 | 67 | 604 | 410 | 1005 | 50 | 59 |
| L | 584 | 392 | 73 | 73 | 185 | 574 | 545 | 67 | 600 | 410 | 1001 | 43 | 60 |
| XL | 601 | 397 | 73 | 73 | 203 | 584 | 565 | 67 | 609 | 410 | 1011 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
