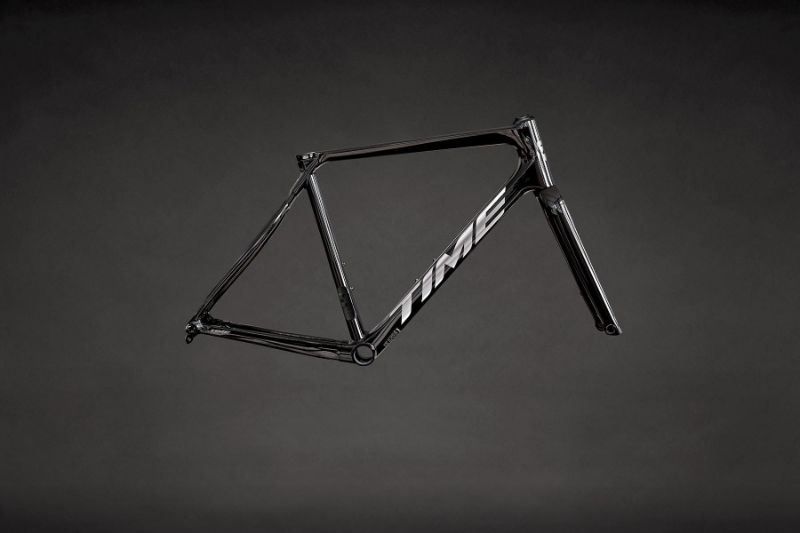

2026 Time NXR geometry
Full frame geometry for the 2026 Time NXR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 372 | 74.7 | 71.5 | 122 | 513 | 450 | 748 | 65 | 580 | 415 | 991 | 47 | 67 |
| S | 538 | 377 | 74 | 72.5 | 142 | 531 | 470 | 770 | 65 | 579 | 415 | 990 | 47 | 61 |
| M | 562 | 383 | 73 | 73 | 166 | 555 | 510 | 800 | 65 | 588 | 415 | 999 | 47 | 58 |
| L | 582 | 390 | 73 | 73 | 186 | 570 | 540 | 825 | 65 | 603 | 415 | 1014 | 47 | 58 |
| XL | 601 | 395 | 73 | 73 | 204 | 580 | 565 | 845 | 65 | 608 | 415 | 1020 | 47 | 58 |
All measurements in millimetres unless marked (°) for angles.
