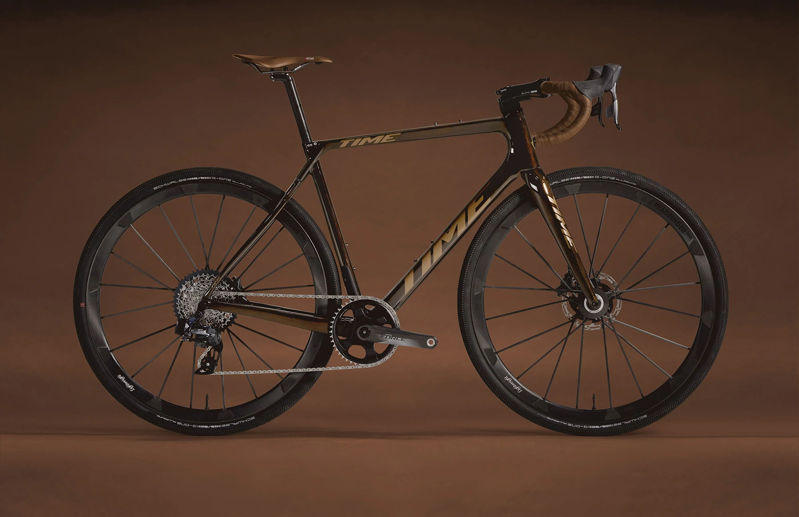

2022 Time ADHX geometry
Full frame geometry for the 2022 Time ADHX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 366 | 73.7 | 70.5 | 123 | 530 | 455 | 75 | 585 | 420 | 994 | 50 | 71 |
| S | 543 | 373 | 73 | 71.5 | 131 | 540 | 480 | 75 | 587 | 420 | 996 | 50 | 64 |
| M | 562 | 383 | 73 | 72.5 | 149 | 555 | 500 | 75 | 594 | 420 | 1003 | 50 | 58 |
| L | 581 | 392 | 73 | 72.5 | 169 | 570 | 530 | 75 | 609 | 420 | 1018 | 50 | 58 |
| XL | 601 | 397 | 73 | 73 | 188 | 580 | 550 | 75 | 615 | 420 | 1024 | 50 | 54 |
All measurements in millimetres unless marked (°) for angles.
